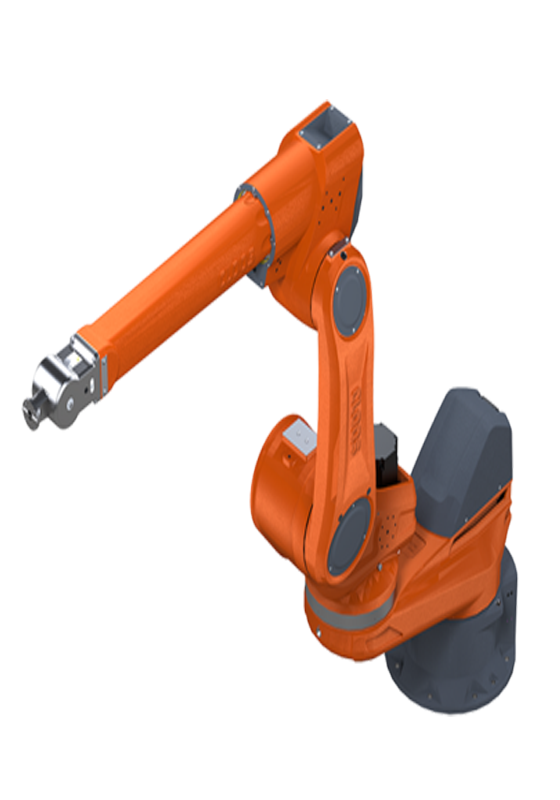

QIROX QRC-410-E

6 axis articulated arm robot

SeriesWL series
Payload10KG
Number of axis7axis
working score2545mm
Designclassic
Installation area500X510
Robot weight345KG
Installtion wayfloor/ceiling
ProcessingPlasma/oxygen gas cutting Laser welding Laser cutting Tig welding (WDF) Tig welding mig/mag tandem welding (wdd) MIG/MAG tandem welding MIG/MAG welding (WDD) MIG/MAG welding Processing
AttachmentSwitching system Stylus pen Online laser sensor Offline laser sensor Robotic arm

Inquire this product

Download link

Flexible appearance design and excellent dynamic performance

High repeatability

Faster shaft speed and higher efficiency

Small footprint and large working range

QIROX QRC-410-E Information Overview

6-axis robot manipulator with classic wrist and 4100 mm working envelope, seventh robot axis increased reach QIROX QRC-410-E WL series robot with classic wrist and seventh robot axis QIROX QRC-410-E is a Six-axis articulated arm robot with eccentric axis 7 integrated between the robot base and the pivot point of axis 1. The robot can be used upright or suspended, mounted on a base or directly on the robot positioner. The QIROX QRC-410-E has a classic wrist that can pick up welding and cutting torches and other work equipment weighing up to 10 kg.

Versatility: Perform a variety of different tasks with the use of interchangeable tools and a maximum weight capacity of 10kg on the wrist.
Process: Handles all mig/mag and tig welding processes, optionally with laser sensor and performs cutting tasks
Flexibility: Modular design for customized systems to optimally meet individual production requirements
Range: Seventh axis extends working range and optimizes welding gun positioning
Quality: high repeatability, long service life, long maintenance cycle
