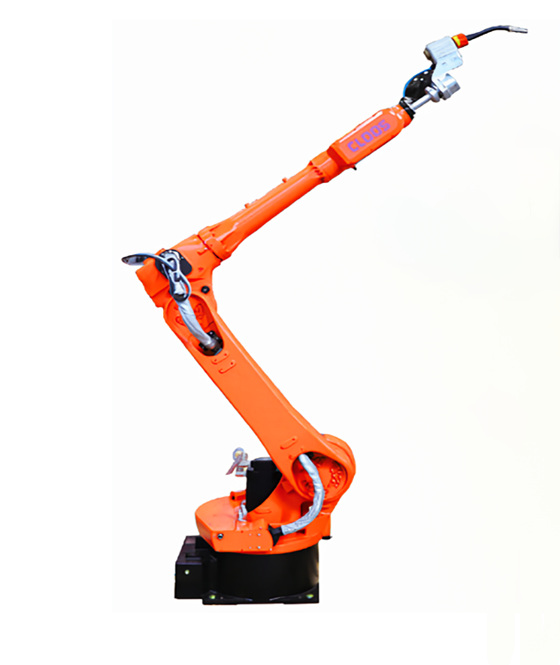

cloos-QRC 405 Eco

QRC 405 Eco

6-axis articulated robot
  • Payload10KG
  • Installtion way地面
  • Number of axis6 axis
  • Weight281KG

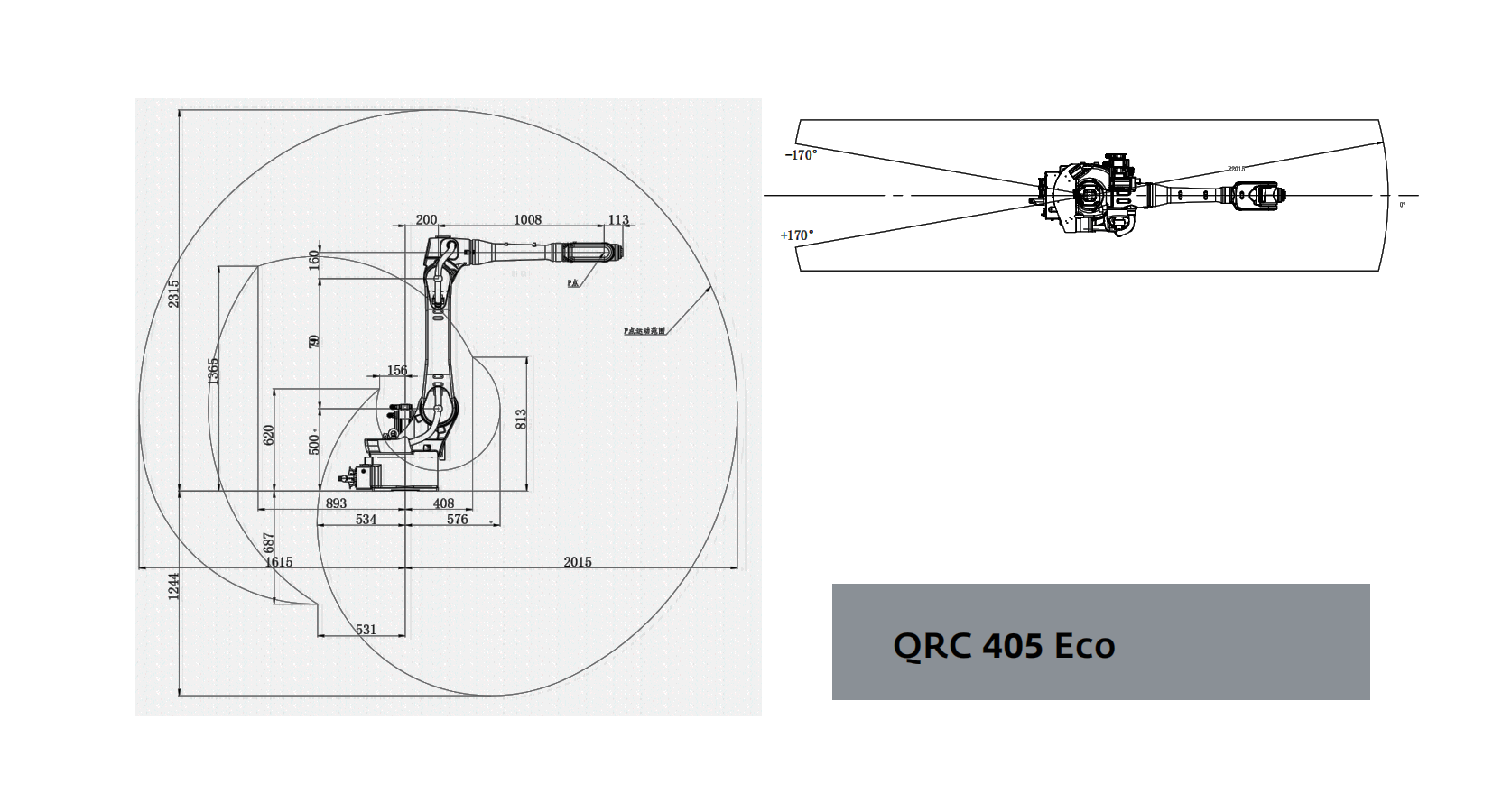

  • working score4020mm
  • Repeatablility±0.05mm
  • Covered area400mmX400mm
Inquire this product

Download link

    Flexible appearance design and excellent dynamic performance
    High repeatability
    Faster shaft speed and higher efficiency
    Small footprint and large working range

    Information Overview
    QRC 405 Eco

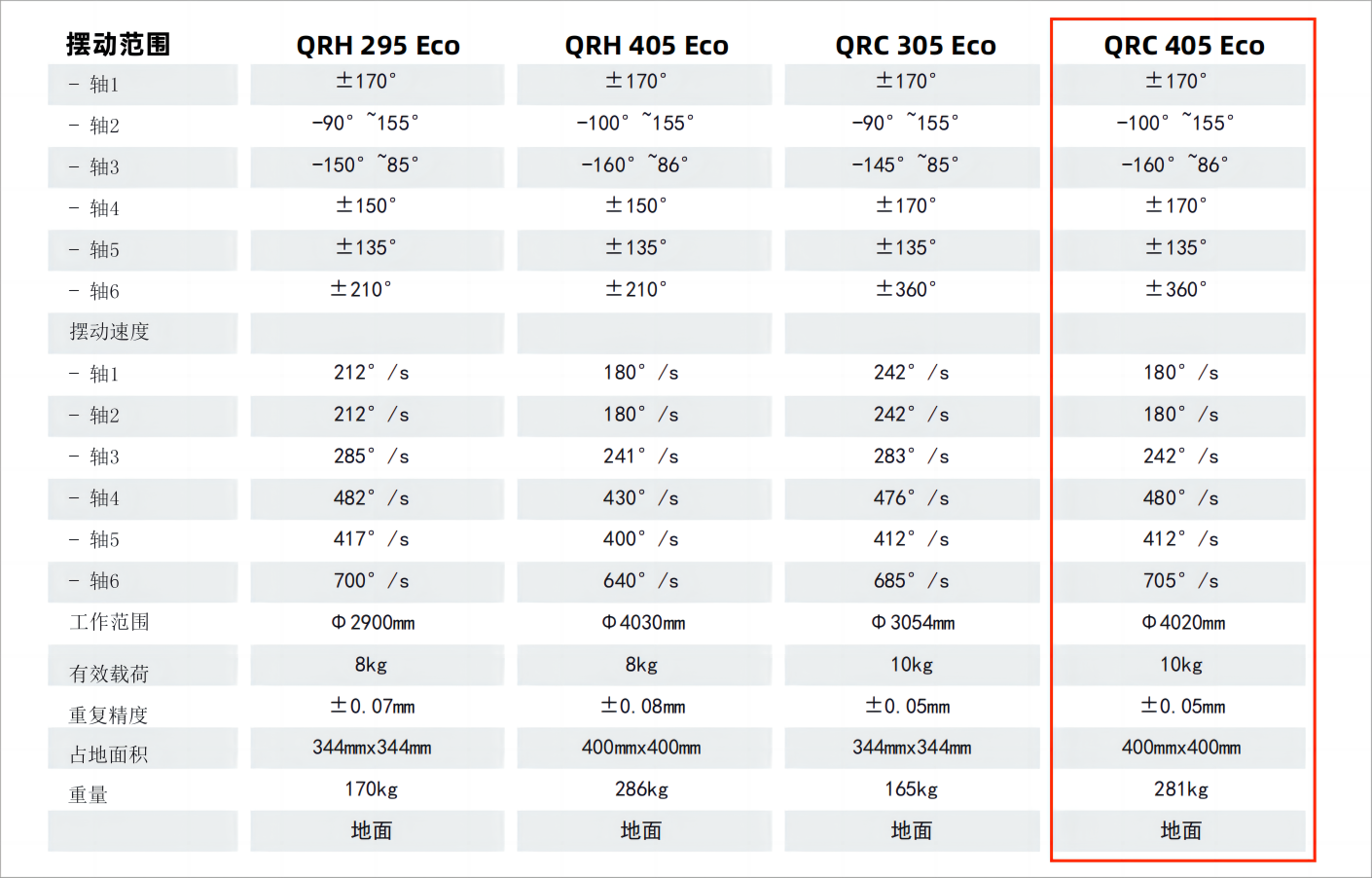

    Technical Parameters

    Swing range
    axis 1 ± 170°axis 2 -100°~+155°axis 3 -160°~+86°axis 4 ± 170° axis 5 ± 135°axis 6 ± 360°
    Swing speed
    axis 1 180°/saxis 2 180°/saxis 3 242°/saxis 4 480°/saxis 5 412°/saxis 6 705°/s
    *
    *
    *
